Mini Console PD2

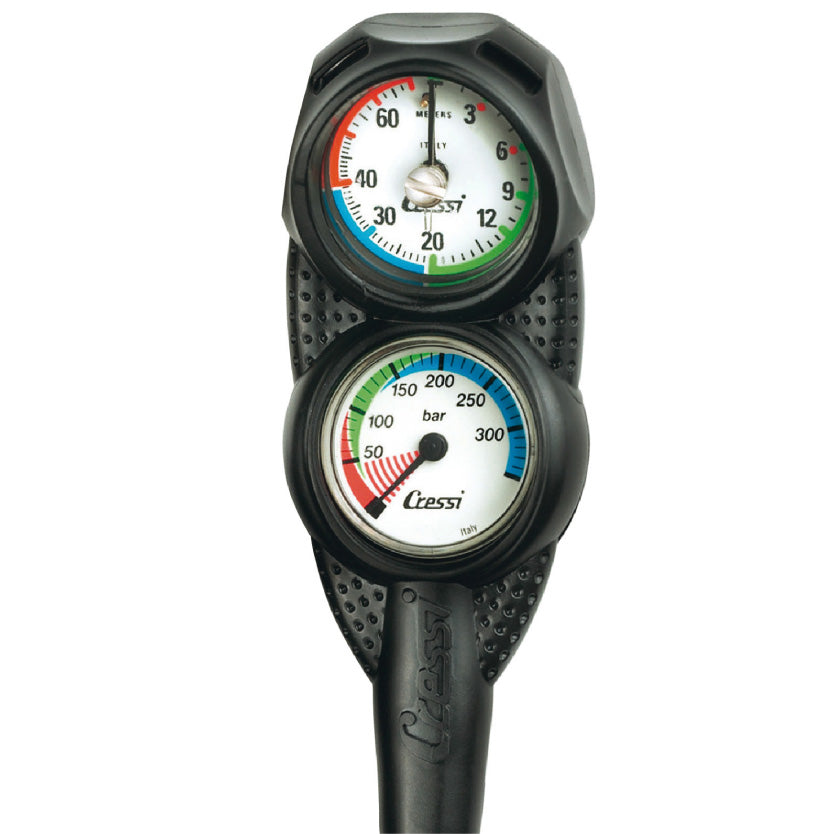

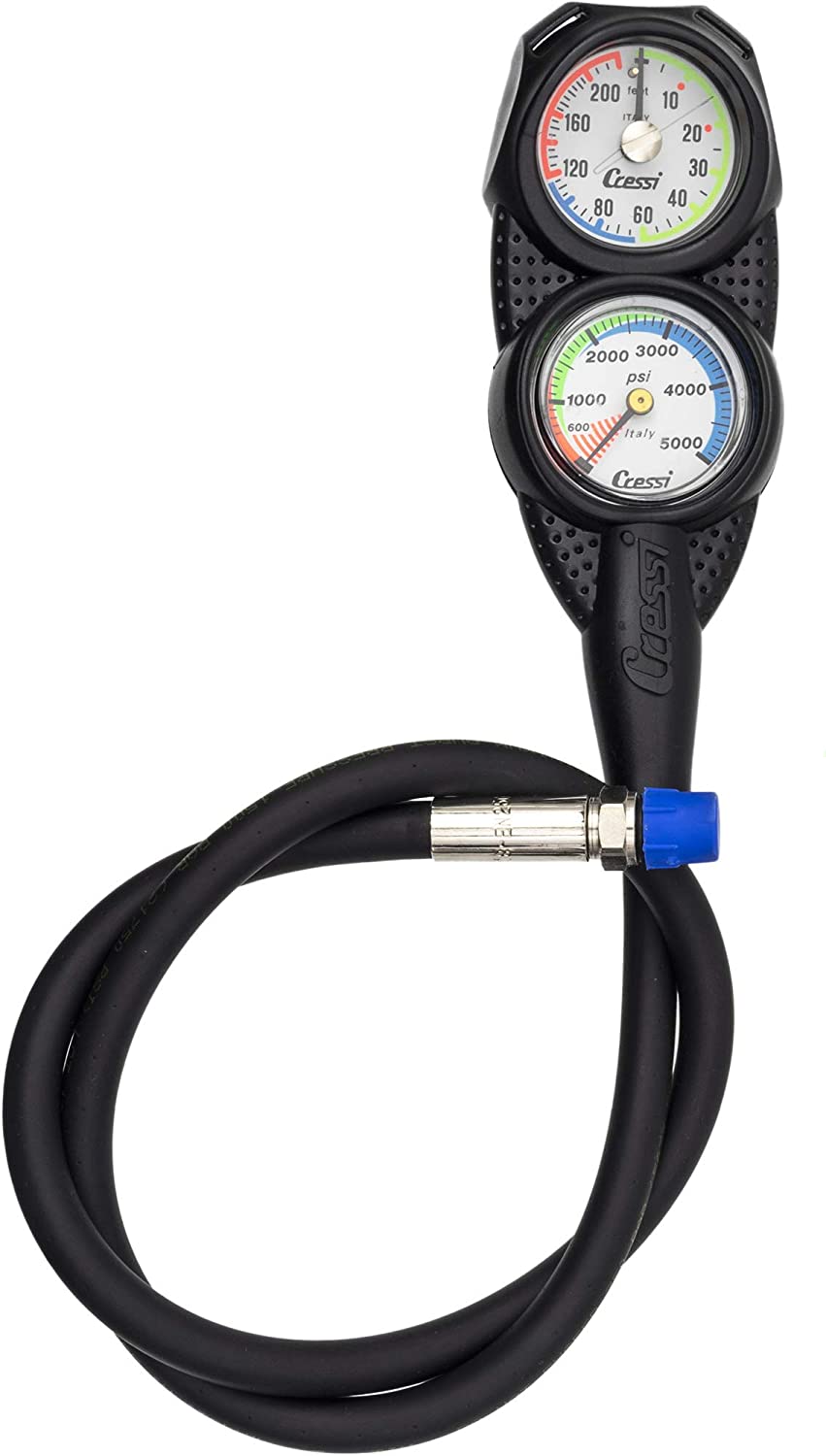

Console 2 is a console of minimal dimensions, which incorporates the Cressi mini pressure gauge and a new small analog depth gauge.

ANALOG DEPTH GAUGE

This is a high quality instrument with metal case and membrane operation , equipped with a wide parabolic scale.

On the luminescent screen the first 12 meters , corresponding to the decompression stop zone, They are very far apart and can be read perfectly.

The full scale is at 70 metres (or 230 feet, in the imperial version) and the screen is divided chromatically into three zones: green up to 20 metres, blue from 20 to 40 metres, red from 40 metres to the full scale.

The instrument is equipped with maximum depth needle , which locks when the maximum immersion depth has been reached.

MINI MANOMETER

The Cressi mini-manometer is a small-sized pressure gauge and reduced weight, expressly designed to avoid excessive demands on the HP connection rod during the first stage of the regulator.

He The device has a metal box Made of chrome-plated brass and is therefore very robust.

He The front glass is made in such a way that it also acts as a pressure relief valve.

In the event of an unexpected increase in pressure inside the appliance, the glass rises slightly, allowing the excess pressure to escape.

The luminescent screen It reaches 350 bar in the metric version and 5000 psi in the imperial version, indicating in red the area when it is below 50 bar, in green between 50 bar and 200 bar and in blue between 200 bar and the full scale.

The device is placed on a small, modern console made of polycarbonate and desmopan, two materials that ensure protection against knocks and scratches and, at the same time, are extremely light.

The pressure gauge and depth gauge have a certain angle between them, which makes it easier and faster to read both instruments regardless of environmental conditions.

At the ends of the console, slightly offset on both sides, there are two handles with which to secure the instrument to the jacket , so that it does not hang, with the risk of hitting itself and, consequently, damaging the environment.
